Ah, Green – Spring time, longer days, boats coming out of storage, and of course St. Patrick’s Day. In the marine electrical world green has another important meaning: safety and compliance with ABYC Standards.
ABYC standards require specific conductor’s in a boats wiring system to be green for identification purposes. Examples regarding green conductors in ABYC compliant electric systems include:
AC Systems
- AC Grounding Conductor (green or green with a yellow stripe): a normally noncurrent carrying conductor, used to connect the metal noncurrent carrying parts of AC electrical equipment to the AC grounding bus and the source ground.
- Shore Power Cable: On each boat equipped with an AC shore power system, a shore power cable that contains the conductors for the power circuit and a grounding (green) conductor shall be provided.
- AC grounding continuity: There shall be no switch or overcurrent protection device in the AC grounding (green) conductor ensuring the grounding path always remains continuous.
- Key purpose: Personnel safety and fault protection. If a fault occurs (for example, a hot conductor contacts a metal appliance case), the AC grounding conductor carries the fault current safely back to the source. This allows overcurrent protection or ground fault protection devices to trip quickly, reducing the risk of electric shock or fire.
DC Systems
- DC Grounding Conductor (green or green with a yellow stripe): a normally noncurrent carrying conductor used to connect metal noncurrent carrying parts of direct current devices to the source ground.
- Key purpose: Equipment protection and fault current return path. This ensures that if a DC positive conductor contacts the equipment case, the fault current has a controlled path back to the battery negative. The overcurrent protection device (such as fuse or circuit breaker) will open the circuit reducing the risk of sparking, overheating, or electrical fire.
Cathodic Bonding Systems

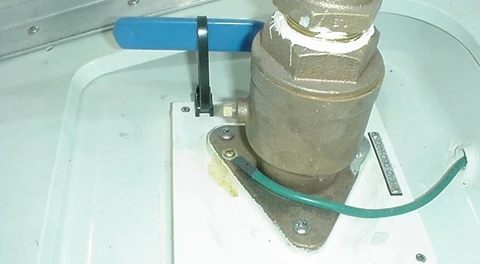

- Cathodic Bonding Conductor (green or green with a yellow stripe): It provides the electrical interconnection of metal objects in common contact with water, to the grounding bus, and to the source of cathodic protection. Wire, where used as a cathodic bonding conductor, shall be #8 AWG or larger.
- Key purpose: Corrosion control and equalizing electrical potential between underwater metals. Cathodic bonding allows anodes to protect all connected components and helps prevent galvanic corrosion between dissimilar metals in the water.
Global Compliance reminder:
ISO 13297 Small Craft Electrical Systems aligns with ABYC E-11 on the use of green conductors.
